Jaw Crusher for Mining and Stone Crushing
Vanore Mining supplies jaw crusher equipment for primary crushing in mining, carrière, usines de traitement des granulats et des minéraux. The machine reduces large stone and ore before secondary crushing, screening or grinding stages.
Présentation de la marque et du produit
Jaw Crusher Equipment from Vanore Mining
Vanore jaw crusher is designed for the first crushing stage of hard rock, ore and quarry stone. The equipment handles bulk material before cone crushing, concassage par impact, dépistage, grinding or mineral processing.
The frame, movable jaw assembly, eccentric shaft, roulements, jaw plates and adjustment system support continuous industrial operation. En outre, Vanore Mining can integrate jaw crushers with feeders, écrans, conveyors and complete crushing plant systems.
Affichage de fabrication

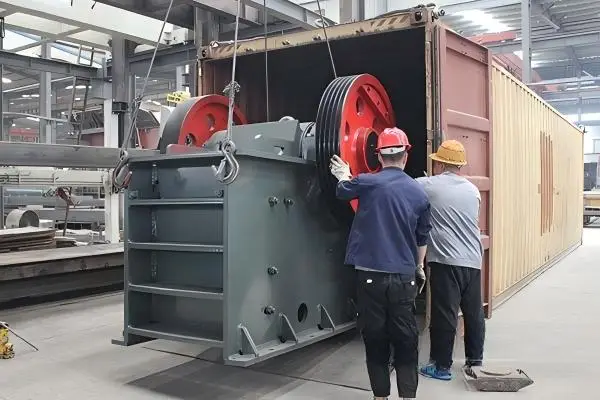

Jaw Crusher Equipment Gallery
Gamme de produits
Jaw Crusher Types and Crushing Options
PE Jaw Crusher
Used for primary crushing in mining, usines de carrières et de granulats.
PEX Fine Jaw Crusher
Supports finer output size for selected secondary crushing duties.
Fixed Crushing Line
Fonctionne avec les mangeoires, screens and conveyors in stationary plants.
Ore Processing Feed
Prepares ore before grinding, classification and beneficiation stages.
Avantages
Jaw Crusher Design Features
Primary Crushing Strength
The jaw crusher handles large feed material and reduces stone or ore for downstream plant stages.
Heavy-Duty Frame
The frame carries the jaw assembly and drive, keeping the crushing components aligned under operating loads.
Planification des pièces d'usure
Jaw plates and wear parts can be planned around material hardness and operating duty.
Model Range
PE and PEX model ranges support small crushing jobs through large industrial plants.
Applications
Jaw Crusher Applications
Concassage de minerai minier
Reduces hard ore before grinding, classification and beneficiation stages.
Quarry Stone Crushing
Handles granite, basalte, limestone and other quarry materials.
Aggregate Production
Prepares crushed stone for screening and secondary shaping.
Mineral Processing Plants
Works before ball mills, rod mills and beneficiation equipment.
Pierre de construction
Supports stone preparation for infrastructure and building material systems.
Matériaux applicables
Materials Suitable for Jaw Crusher Crushing
Jaw Crusher Technical Specifications
| Modèle | Feed opening (mm) | Taille maximale du flux (mm) | Discharge size range (mm) | Capacité (ème) | Motor power (kW) | Poids (t) | Overall dimensions (mm) |
|---|---|---|---|---|---|---|---|
| PE150 × 250 | 150 × 250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 896 × 745 × 935 |
| PE200 × 350 | 200 × 350 | 180 | 15-50 | 1-6 | 11 | 1.2 | 996 × 800 × 760 |
| PE250 × 400 | 250 × 400 | 200 | 20-50 | 5-20 | 15 | 3 | 1430 × 1310 × 1340 |
| PE400 × 600 | 400 × 600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700 × 1732 × 1653 |
| PE500 × 750 | 500 × 750 | 425 | 50-100 | 50-100 | 45-55 | 12 | 2035 × 1921 × 2000 |
| PE600 × 900 | 600 × 900 | 480 | 65-165 | 60-130 | 55-75 | 17 | 2290 × 2206 × 2370 |
| PE750 × 1060 | 750 × 1060 | 630 | 80-140 | 80-180 | 90-110 | 29 | 2655 × 2302 × 3110 |
| PE900 × 1200 | 900 × 1200 | 750 | 95-165 | 140-260 | 110-132 | 58 | 3800 × 3166 × 3045 |
| PE1200 × 1500 | 1200 × 1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 6380×5310 × 3710 |
| PEX250 × 750 | 250 × 750 | 210 | 25-60 | 15-30 | 22-30 | 5 | 1667×1545 × 1020 |
| PEX250 × 1000 | 250 × 1000 | 210 | 25-60 | 15-50 | 30-37 | 7 | 1550 × 1964 × 1380 |
| PEX250 × 1200 | 250 × 1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192×1900 × 1950 |
| PEX300 × 1300 | 300 × 1300 | 250 | 20-90 | 16-105 | 55 | 15.6 | 2720 × 1950 × 1600 |
Feed opening, discharge and installed duty
Use the listed maximum feed size to match incoming rock to each model. The feed opening gives the chamber entrance dimensions. Crusher setting and feed characteristics influence the discharge, while downstream screening separates the required aggregate grades.
Rock characteristics, feed grading, humidité, crusher setting and jaw wear affect capacity. The table lists crusher drive power and overall machine dimensions. Plant planning also allows for foundation loads, access and maintenance clearances.
Structure du produit
Main Structure of Vanore Jaw Crusher
Crusher Frame
Supports the main crushing chamber and holds key components in alignment.
Fixed Jaw Plate
Forms one side of the crushing chamber and works with the movable jaw.
Movable Jaw Assembly
Moves material against the fixed jaw for compression crushing.
Eccentric Shaft
Transfers motion to drive the movable jaw during crushing operation.
Adjustment System
Supports discharge size control according to product requirements.
Motor and Flywheel
Provide power and operating stability for continuous crushing.
Intégration d'usine
Jaw Crusher in a Complete Crushing Plant
The jaw crusher can connect with feeding, concassage secondaire, screening and conveying equipment in a complete stationary crushing line.
Équipement associé: Alimentateur vibrant, Concasseur à percussion, Concasseur à cône à ressort et usine de concassage de pierre.
Jaw Crusher Equipment Scope and Technical Details
| Equipment group | Function and scope |
|---|---|
| Crushing assembly | Cadre, fixed and moving jaw assemblies, eccentric shaft, bearings and adjustment mechanism form the crushing unit. |
| Drive and protection | Motor matching, transmission, guards and electrical connections are defined with the selected equipment configuration. |
| Wear components | Jaw plates and cheek protection relate to the chamber arrangement and material abrasiveness. Replacement parts must match the actual model and fastening dimensions. |
| Plant equipment | The hopper and feeder deliver material to the jaw crusher; conveyors transfer its discharge to secondary crushing or screening. |
Layout and replacement-part details
Equipment layout uses the crusher envelope together with feed height, discharge clearance, maintenance access and foundation loads. Foundation design uses the installation dimensions and loads of the chosen crusher assembly.
For a new line or replacement duty, Vanore can discuss the crusher model, material flow and connection to alimentation contrôlée et product screening. For wear-part inquiries, the machine model, part identification and attachment dimensions help establish compatibility.
Jaw Crusher FAQ
What is a jaw crusher used for?
A jaw crusher is used for primary crushing of stone, ore and bulk materials before secondary crushing, screening or grinding.
What materials can a jaw crusher process?
Les matériaux courants incluent le granit, basalte, calcaire, quartz, pebble, minerai de cuivre, iron ore and gold ore.
What is the capacity range of Vanore jaw crusher equipment?
The listed PE and PEX models cover approximately 1 à 800 t/h depending on model and material conditions.
Can a jaw crusher work with cone crushers and screens?
Oui. Jaw crushers commonly work before cone crushers, concasseurs à percussion, vibrating screens and conveyors in complete crushing plants.
Qu'est-ce qui détermine la configuration de l'équipement?
Final configuration depends on raw material, taille de l'aliment, taille de sortie, capacity and site layout.
How is incoming rock matched to the crusher?
Check the maximum feed size listed for the model alongside its feed-opening dimensions. Feeding equipment is arranged to deliver rock within that limit to the crushing chamber.
How is a complete crushing line sized?
The jaw crusher, mangeoire, concassage secondaire, screening and conveyors are matched to the required plant output. Material characteristics and the required aggregate sizes guide the combination.
Contacter Vanore Mining
Discuss Your Jaw Crusher Application
Send your material, taille maximale du flux, required throughput and downstream product sizes. Vanore Mining can review the equipment configuration and its connection to your plant.
Crushing Before Gold and Copper Processing
Le 300 t/day gold processing project in Suriname et 1,500 t/day copper processing project in Mongolia show how ore crushing connects with grinding, classification and mineral recovery.
