Jaw crusher feed size control is a key part of stable primary crushing in fixed crushing lines. When the feed entering the crusher is consistent, the crushing chamber works more smoothly, the discharge flow becomes easier to manage and downstream screening can operate with better material continuity.
Why Feed Size Control Matters Before the Jaw Crusher
A penghancur rahang is designed for coarse reduction, but it still needs a controlled feed condition. Oversized blocks, sudden feed surges or uneven material layers can affect chamber loading and discharge stability. In a fixed crushing line, the feed system should help the crusher receive material at a steady rate instead of forcing the crusher to absorb every variation from the raw material pile.
Feed size control also affects how material moves after primary crushing. A steadier discharge from the jaw crusher supports conveyor transfer, secondary crushing and screen classification. For this reason, the feed hopper, feeder and crusher should be considered as one front-end section of the plant.

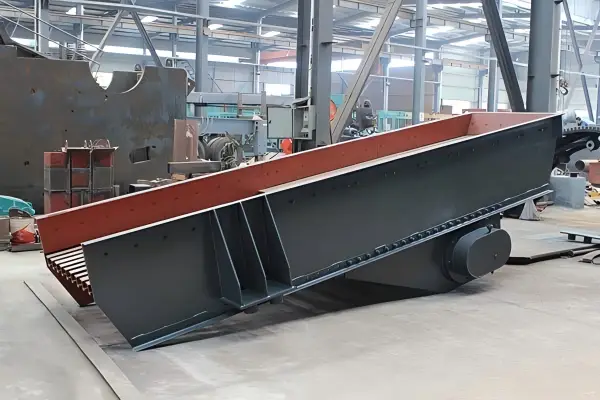

The Role of the Vibrating Feeder
A pengumpan bergetar meters material into the jaw crusher and helps reduce sudden feed impact. In many quarry and mining lines, the feeder also includes a grizzly section that allows smaller material to bypass part of the coarse crushing load.
This controlled feeding supports stable primary crushing, reduces unnecessary material buildup at the crusher inlet and keeps the plant flow easier to observe. It is especially important when the raw feed includes mixed stone sizes after blasting or excavation.
Jaw Crusher Chamber and Discharge Stability
The jaw crusher chamber receives material from the feeder and compresses it between fixed and moving jaw plates. When feed size is too uneven, the chamber may experience irregular loading. When feed size and feed rate are controlled, the crusher can produce a more consistent discharge for the next stage.
Vanore Mining includes jaw crushers within its penghancur stasioner range for fixed plant systems. The equipment role is primary crushing: reducing large stone or ore into a size suitable for conveying, secondary crushing and screening.
How Feed Control Supports Downstream Screening
Setelah penghancuran primer, material often moves to secondary crushing or a layar bergetar. If the jaw crusher discharge is unstable, the next stage must handle stronger size variation and changing material flow. Stable feed control before the jaw crusher helps reduce that variation at the start of the line.
- Pelompat: receives raw stone and buffers material before feeding.
- Vibrating feeder: controls feed rate and supports steady crusher loading.
- Perjalanan penghancur: reduces large material in the primary crushing stage.
- Konveyor pembuangan: transfers crushed material toward screening or secondary crushing.
- Bagian penyaringan: separates material by size for the next plant path.

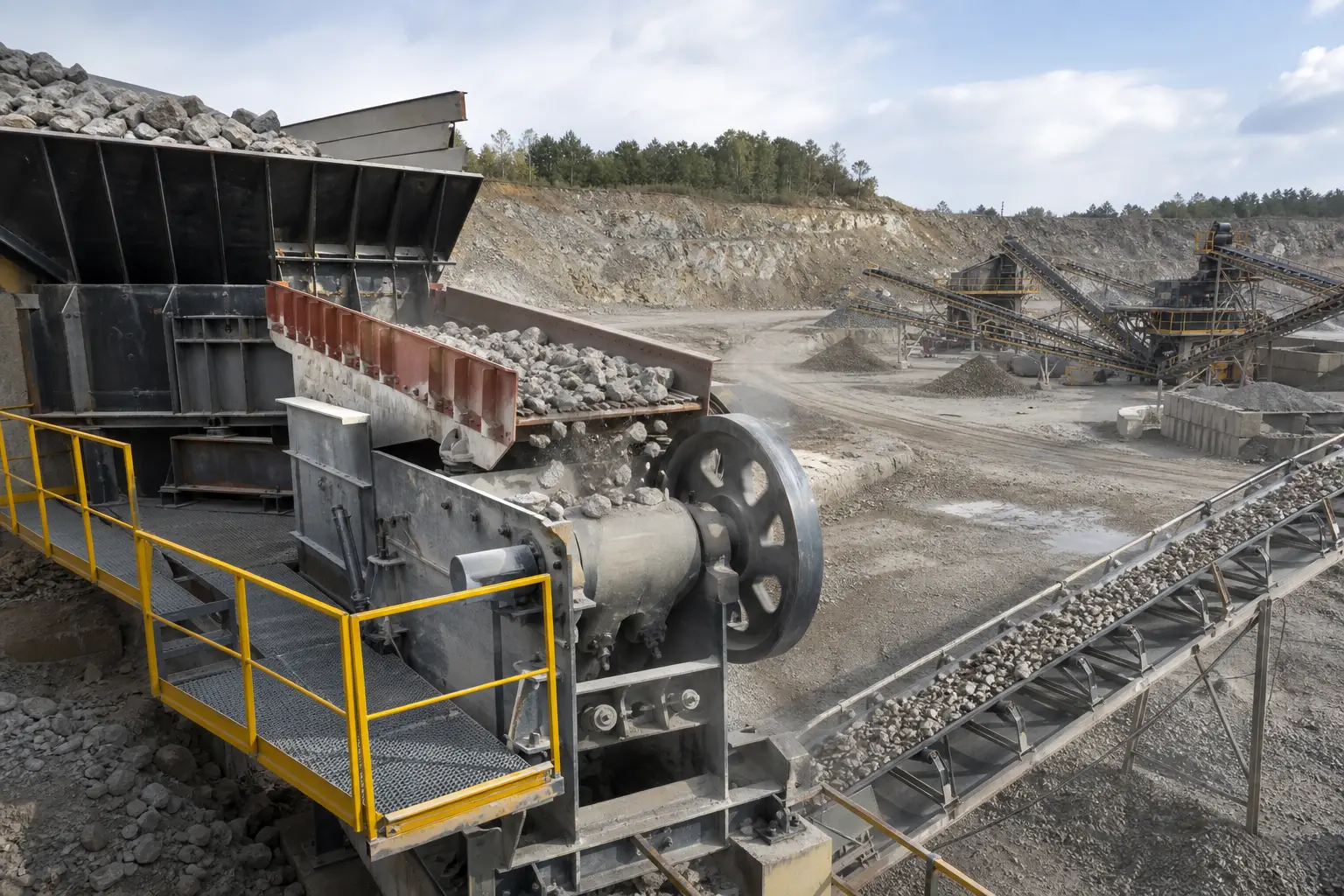

Fixed Crushing Line Layout Factors
In a fixed crushing line, feed control depends on more than the crusher itself. Hopper volume, feeder width, feeder angle, crusher inlet size, material moisture and conveyor arrangement all influence the front-end flow. A layout that matches these parts can improve plant continuity without relying on one machine alone.
For equipment matching and crushing line discussion, pengguna bisa hubungi Vanore Mining with material type, maximum feed size, ukuran debit target dan kapasitas pabrik yang dibutuhkan.
Pertanyaan Umum
Why does jaw crusher feed size control matter?
Jaw crusher feed size control helps keep the primary crushing chamber stable, reduces sudden overload risk and supports smoother downstream conveying and screening.
Which equipment helps control feed before a jaw crusher?
A vibrating feeder and feed hopper usually control the material entering the jaw crusher. A grizzly section can also separate fine material before coarse crushing.
How does feed control affect screening?
Consistent feed control helps the jaw crusher produce a steadier discharge size, which makes downstream screening and secondary crushing easier to manage.
