Flotation Machine for Ore Beneficiation and Mineral Processing
Vanore Mining supplies flotation machine equipment for ore beneficiation, mineral separation and concentrate recovery. The flotation cell supports air mixing, pulp circulation and mineral separation in complete processing plants.
Brand and Product Overview
Flotation Machine Equipment from Vanore Mining

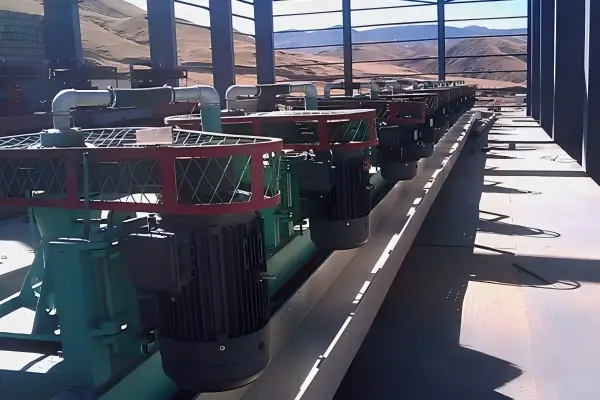

Vanore flotation machine is engineered for separating valuable minerals from ore slurry through flotation process operation. The equipment suits gold, copper, lead-zinc and selected non-ferrous mineral processing plants.
The cell body, impeller, stator, scraper and drive system support slurry circulation and froth collection. Vanore Mining integrates flotation machines with grinding, classification, conditioning, thickening and dewatering equipment.
Manufacturing Display
Flotation Machine Equipment Gallery
Configuration
Flotation Machine Types and Configuration Options
SF Flotation Cell
Common flotation cell type for ore beneficiation circuits.
XJ Flotation Cell
Suitable for selected mineral separation process requirements.
Multi-Cell Layout
Supports continuous flotation stages in beneficiation plants.
Plant Flotation System
Can work with conditioning, thickening and dewatering equipment.
Advantages
Flotation Machine Design Features
Industrial Structure
The cell contains the slurry, while the impeller, stator and drive maintain circulation and air mixing. The scraper collects mineral-bearing froth for the next treatment stage.
Stable Process Performance
The working system supports consistent material treatment in complete plant lines.
Wear Parts Planning
Key wear parts can be planned according to material properties and operating duty.
Project Matching
Equipment configuration can be matched with plant capacity and process flow.
Applications
Flotation Machine Applications
Gold Ore Flotation
Supports gold mineral separation in suitable beneficiation circuits.
Copper Ore Processing
Separates copper minerals after grinding and classification.
Lead-Zinc Ore
Works in sulfide ore flotation and concentrate recovery.
Mineral Concentration
Improves concentrate preparation before dewatering.
Non-Ferrous Minerals
Supports selected non-ferrous mineral processing lines.
Applicable Materials
Materials Suitable for Flotation Separation
Technical Data
Flotation Machine Technical Specifications
| Model | Effective Volume | Capacity | Motor Power | Spindle Speed | Scraper Speed | Cell Size |
|---|---|---|---|---|---|---|
| SF-0.37 | 0.37 m³ | 0.2-0.4 m³/min | 1.5 kW | 352 r/min | 25 r/min | 700×700×750 mm |
| SF-0.7 | 0.7 m³ | 0.3-0.9 m³/min | 3 kW | 400 r/min | 25 r/min | 900×820×950 mm |
| SF-1.2 | 1.2 m³ | 0.6-1.6 m³/min | 5.5 kW | 330 r/min | 25 r/min | 1100×1100×1100 mm |
| SF-2.8 | 2.8 m³ | 1.5-3.5 m³/min | 11 kW | 268 r/min | 25 r/min | 1750×1600×1150 mm |
| SF-8 | 8 m³ | 4.0-8.0 m³/min | 30 kW | 191 r/min | 25 r/min | 2200×2900×1400 mm |
| SF-20 | 20 m³ | 5.0-20 m³/min | 30×2 kW | 191 r/min | 25 r/min | 2850×3800×2000 mm |
Product Structure
Main Structure of Vanore Flotation Machine
Cell Body
Holds slurry and froth during flotation operation.
Impeller
Supports pulp circulation and air dispersion.
Stator
Works with the impeller to improve mixing and flow.
Scraper System
Collects froth concentrate from the flotation cell.
Drive System
Transfers power for stable flotation operation.
Feed and Discharge
Connects flotation cells in continuous process lines.
Circuit Integration
Flotation Machine in a Complete Processing Line
The flotation machine can connect with grinding, classification, conditioning, thickening and dewatering equipment in a complete beneficiation circuit.
Related equipment: Ball Mill, Jaw Crusher and Mining Equipment Manufacturer.
Service Support
Vanore Mining Support for Flotation Machine Projects
Product Configuration
Vanore plans equipment model around plant requirements.
Spare Parts Support
Selected wear parts can be supplied for operation planning.
FAQ
Flotation Machine FAQ
What is a flotation machine used for?
It separates valuable minerals from ore slurry through flotation process operation in beneficiation plants.
What minerals can it process?
Common applications include gold, copper, lead-zinc and selected non-ferrous mineral ores.
Can it work after ball mill grinding?
Yes. Flotation machines commonly work after grinding, classification and conditioning stages.
What determines the equipment configuration?
Final configuration varies with material properties, process flow and plant layout.
Contact Vanore Mining
Build Your Flotation Machine System with Vanore Mining
Copper Flotation Project in Mongolia
The 1,500 t/day copper processing project in Mongolia connects ore preparation and wet grinding with roughing, scavenging, cleaning and concentrate dewatering.
