Ball Mill for Mining Ore Grinding and Mineral Processing
Vanore Mining supplies heavy-duty ball mill equipment for ore grinding, mineral processing and industrial material preparation. Designed for wet or dry grinding circuits, our mills support stable operation in gold, copper, iron, manganese and non-metallic mineral processing plants.
Brand and Product Overview
Heavy-Duty Ball Mill Equipment from Vanore Mining
Vanore ball mill is engineered for grinding crushed ore and mineral materials into finer particles before classification, flotation, magnetic separation, leaching or further beneficiation. The equipment suits wet grinding and dry grinding circuits, depending on the mineral process and final product requirement.
The mill body, transmission system, liner design and grinding media arrangement support continuous industrial operation. In complete mineral processing projects, Vanore Mining integrates the grinding mill with crushing equipment, feeding systems, classifiers, hydrocyclones, flotation machines, magnetic separators, thickeners and drying equipment.
Manufacturing Display

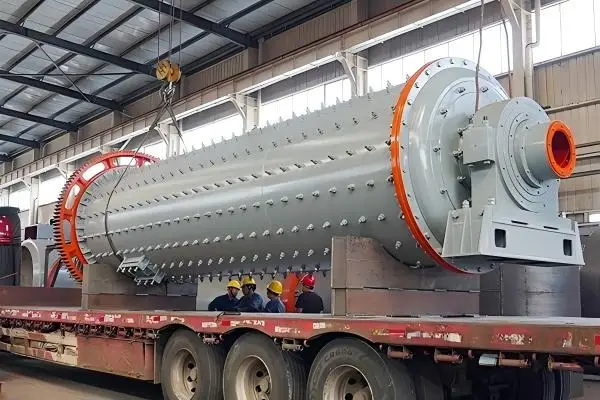

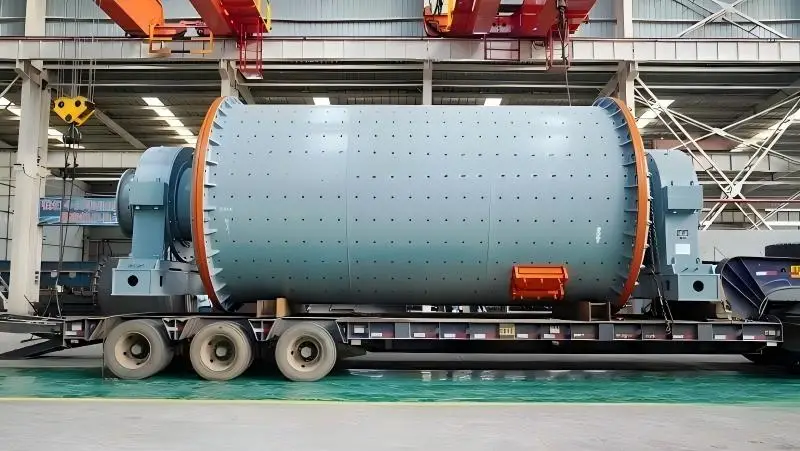

Ball Mill Equipment Gallery
Grinding Options
Ball Mill Types and Grinding Options
Wet Ball Mill
Designed for slurry grinding circuits before flotation, magnetic separation, leaching or other wet beneficiation processes.
Dry Ball Mill
Used for dry mineral powder preparation and industrial material grinding where water use is limited or dry output is required.
Overflow Ball Mill
Suitable for continuous grinding circuits where stable discharge and classification are required.
Grid Ball Mill
Designed for grinding duties where faster discharge and controlled particle size are needed in mineral processing plants.
Advantages
Ball Mill Design Features
Heavy-Duty Mill Structure
The cylinder, end cover, transmission system and support structure are designed for continuous industrial grinding duties.
Wet and Dry Grinding Options
Vanore supports both wet and dry grinding configurations for different ore processing and industrial material applications.
Stable Grinding Performance
The grinding media, liner arrangement and mill speed are configured to support consistent particle size reduction.
Wear Parts and Liner Support
Liners, grinding media and key wear components can be planned according to ore hardness and operating conditions.
Applications
Ball Mill Applications
Gold Ore Grinding
Used before gravity separation, flotation, cyanidation or leaching processes.
Copper Ore Processing
Prepares copper ore particles for flotation and mineral liberation.
Iron Ore Processing
Supports grinding before classification and magnetic separation.
Manganese and Lead-Zinc Ore
Used in beneficiation circuits where controlled grinding size is required.
Industrial Minerals
Suitable for quartz, limestone, silica sand, cement clinker and other non-metallic materials.
Applicable Materials
Materials Suitable for Ball Mill Grinding
Ball Mill Technical Specifications
| Cylinder diameter × length (mm) | Cylinder speed (r/min) | Ball load (t) | Maximum feed size (mm) | Discharge size range (mm) | Capacity (t/h) | Motor power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| 900 × 1800 | 36 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
| 900 × 3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
| 1200 × 2400 | 36 | 3 | ≤25 | 0.075-0.6 | 2.2-4.8 | 30 | 10.5 |
| 1500 × 3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 4.3-8 | 75 | 15 |
| 1830 × 3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 6.5-12 | 130 | 28 |
| 1830 × 3600 | 25.4 | 13 | ≤25 | 0.074-0.4 | 8-13 | 130 | 30 |
| 2100 × 3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 9-16 | 180 | 37 |
| 2400 × 3600 | 21 | 23 | ≤25 | 0.074-0.4 | 14-25 | 320 | 63 |
Grinding duty and product fineness
Cylinder diameter and length identify the mill size. Ball load gives the mass of grinding media, and the power rating applies to the mill drive. Pumps, classification and other connected equipment are sized as part of the complete grinding circuit.
Throughput and product fineness are assessed together. Ore grindability, feed grading, media charge, slurry conditions and classification determine the grinding duty. For a specified P80, share the feed data and target production rate so the circuit can be evaluated on that basis.
Wet and dry grinding require different material-handling arrangements. Water balance and slurry classification belong to the wet circuit; air handling, collection and product transport belong to the dry circuit. Each route is sized for its own material-handling and grinding conditions.
Product Structure
Main Structure of Vanore Ball Mill
Feeding System
The feeding system guides crushed material into the mill chamber with stable material entry.
Grinding Cylinder
The cylinder provides the main grinding space and supports continuous rotation under industrial load.
Liners and Grinding Media
Liners protect the cylinder while grinding media reduce mineral particles through impact and abrasion.
Drive System
The drive system transfers power to the mill body for stable rotation and process operation.
Discharge System
The discharge section releases ground material toward classification or downstream processing.
Support Base
The support base holds the mill body and transmission components in working alignment.
Circuit Integration
Ball Mill in a Complete Grinding Circuit
Vanore Mining designs grinding equipment as part of a complete mineral processing circuit. The mill can connect with crushing, feeding, classification and beneficiation equipment for continuous plant operation.
Related equipment: Jaw Crusher, Stone Crusher Plant and Mining Equipment Manufacturer.
Ball Mill Equipment Scope and Technical Details
| Equipment group | Function and scope |
|---|---|
| Mill assembly | Cylinder, end connections, liners, support arrangement and drive form the grinding equipment. |
| Discharge arrangement | Grate and overflow discharge use different outlet arrangements. The discharge type is specified to suit the grinding circuit. |
| Media and wear components | Ball charge, liner profile and replacement components must match the mill arrangement and grinding duty. |
| Wet grinding circuit | Water supply, slurry transfer, classification and coarse-material return connect to the mill as separate process stages. |
| Dry grinding circuit | Feed handling, air handling, dust collection and product transport require a configuration suited to dry material. |
Mill layout and process connections
The installation layout combines mill dimensions with feed and discharge elevations, drive access, liner-replacement space and foundation loads. These installation requirements are established for the chosen mill and site layout.
Vanore can discuss the mill assembly and its connection to mineral processing equipment. Where classification returns coarse particles, circulating load is assessed separately from fresh ore feed. Dust collection serves dry material-handling and powder-collection points.
Ball Mill FAQ
What is a ball mill used for in mining?
The equipment grinds crushed ore and mineral materials into finer particles before classification, flotation, magnetic separation, leaching or other beneficiation processes.
Can Vanore ball mill support wet and dry grinding?
Yes. Vanore Mining can supply wet grinding or dry grinding configurations according to the process route and material condition.
What materials can be processed by a ball mill?
Common materials include gold ore, copper ore, iron ore, manganese ore, lead-zinc ore, quartz, limestone, silica sand, cement clinker and other industrial minerals.
What equipment is commonly integrated with a ball mill?
The grinding system commonly works with jaw crusher, feeder, belt conveyor, classifier, hydrocyclone, flotation machine, magnetic separator, thickener and rotary dryer.
What affects ball mill capacity and configuration?
Material properties, feed size, target fineness, grinding method and plant layout affect capacity and configuration.
Does Vanore Mining support spare parts for ball mills?
Vanore Mining can support liners, grinding media and selected wear components according to project requirements.
What does ball load describe?
Ball load is the mass of grinding media charged into the mill. It is listed alongside the ore-processing capacity, which is expressed in tonnes per hour.
How are production rate and product fineness matched?
The grinding duty combines the required throughput and product fineness. Ore grindability, feed grading, media charge, slurry conditions and classification are evaluated together for that duty.
Contact Vanore Mining
Discuss Your Ball Mill Application
Send your ore, feed size, required throughput, target fineness and wet or dry process route. Vanore Mining can review the equipment configuration and its connection to your plant.
