Magnetic Separation Equipment
Wet Magnetic Separator for Ore Beneficiation and Mineral Processing
Vanore Mining supplies wet magnetic separator equipment for iron ore processing, magnetic mineral recovery and beneficiation plants. The drum separator supports continuous separation of magnetic minerals from slurry materials.
نظرة عامة على العلامة التجارية والمنتج

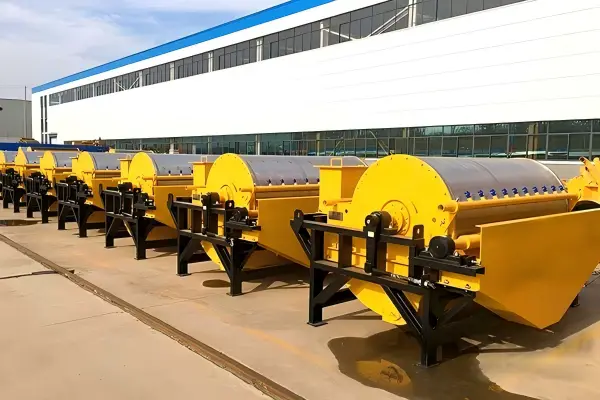

Wet Magnetic Separator Equipment from Vanore Mining
Vanore wet magnetic separator is engineered for separating magnetic minerals from slurry materials in beneficiation lines. The equipment suits iron ore, magnetite, titanomagnetite and selected magnetic mineral processing applications.
The drum, tank, magnetic system, transmission assembly and discharge structure support continuous operation. Vanore Mining integrates magnetic separators with grinding, تصنيف, flotation and dewatering equipment in complete processing plants.
عرض التصنيع

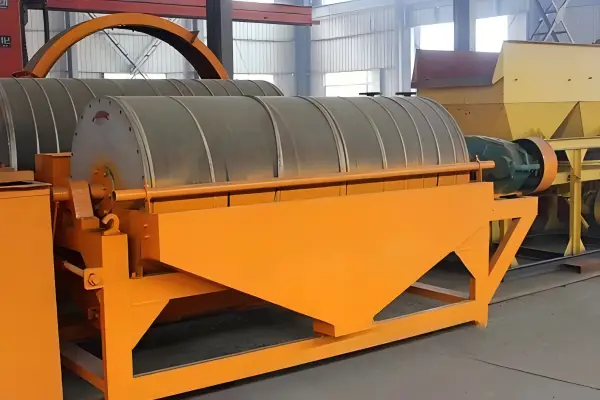

Wet Magnetic Separator Manufacturing and Product Display
Product images show separator structure, equipment preparation and project display. The display reflects Vanore Mining focus on beneficiation process equipment and plant operation support.
إعدادات
Wet Magnetic Separator Types and Configuration Options
CTB Separator
Semi-counter current configuration for common magnetic separation duties.
CTS Separator
Concurrent type for selected wet separation process requirements.
CTN Separator
Counter-current type for fine magnetic mineral recovery.
Plant Separation System
Can work with grinding, classification and dewatering equipment.
المزايا
Why Choose Vanore Wet Magnetic Separator?
الهيكل الصناعي
The equipment body and support structure are prepared for continuous mineral processing operation.
Stable Process Performance
The working system supports consistent material treatment in complete plant lines.
التكامل النباتي
The machine can connect with upstream and downstream mineral processing equipment.
Wear Parts Planning
Key wear parts can be planned according to material properties and operating duty.
التركيز على التصنيع
Vanore focuses on practical structure, assembly and factory preparation.
مطابقة المشروع
Equipment configuration can be matched with plant capacity and process flow.
التطبيقات
Wet Magnetic Separator Applications
Iron Ore Processing
Separates magnetic minerals after grinding and classification.
Magnetite Beneficiation
Supports magnetite recovery in wet beneficiation plants.
Tailings Recovery
Can recover magnetic minerals from suitable tailings streams.
Mineral Concentration
Improves concentrate preparation before downstream processing.
المعادن الصناعية
Works with selected magnetic mineral materials.
المواد المطبقة
Materials Suitable for Magnetic Separation
البيانات الفنية
Wet Magnetic Separator Technical Specifications
| نموذج | Cylinder Size | سعة | Motor Power | Drum Speed | وزن |
|---|---|---|---|---|---|
| CTS/CTN/CTB-69 | 600×900 mm | 8-15 ذ | 1.1 كيلوواط | 40 r/min | 780 kg |
| CTS/CTN/CTB-612 | 600×1200 mm | 10-20 ذ | 2.2 كيلوواط | 40 r/min | 990 kg |
| CTS/CTN/CTB-718 | 750×1800 mm | 20-45 ذ | 3 كيلوواط | 35 r/min | 2100 kg |
| CTS/CTN/CTB-918 | 900×1800 mm | 25-55 ذ | 4 كيلوواط | 28 r/min | 2500 kg |
| CTS/CTN/CTB-1024 | 1050×2400 mm | 52-100 ذ | 5.5 كيلوواط | 22 r/min | 5000 kg |
| CTS/CTN/CTB-1530 | 1500×3000 mm | 90-170 ذ | 11 كيلوواط | 14 r/min | 9700 kg |
The above specifications are reference ranges based on the approved Hongji Mining wet magnetic separator parameter source.
هيكل المنتج
Main Structure of Vanore Wet Magnetic Separator
Magnetic Drum
Provides the main separation surface for magnetic mineral recovery.
Tank Body
Holds slurry material during wet separation operation.
Magnetic System
Generates the magnetic field for mineral separation.
نظام القيادة
Supports stable drum rotation during operation.
Feed Section
Guides slurry material into the separation area.
قسم التفريغ
Releases concentrate and tailings streams.
تكامل الدائرة
Wet Magnetic Separator in a Complete Processing Line
The wet magnetic separator can connect with grinding, classification and dewatering equipment in a complete beneficiation circuit.
الصفحات المنشورة ذات الصلة: مطحنة الكرة, كسارة الفك و الشركة المصنعة لمعدات التعدين.
التركيز على التصنيع
التركيز على التصنيع والجودة
تصنيع المعدات
Vanore focuses on practical manufacturing quality for mineral processing equipment.
التحكم في التجميع
تدعم أعمال التجميع التشغيل المستقر ومتطلبات تكامل المصنع.
Process Component Planning
Key working parts are planned according to material and process duty.
تفتيش المصنع
يشمل إعداد المعدات فحص المصنع قبل الشحن.
تغليف الصادرات
تنسيق التعبئة والتغليف والتحميل متاح للمشاريع الخارجية.
دعم تسليم المشروع
تدعم Vanore الإعداد لتسليم المشروع والتواصل الفني.
دعم الخدمة
Vanore Mining Support for Wet Magnetic Separator Projects
تكوين المنتج
Vanore plans equipment model around plant requirements.
التكامل النباتي
Equipment can be matched with related mineral processing systems.
دعم قطع الغيار
Selected wear parts can be supplied for operation planning.
دعم تسليم الصادرات
دعم التعبئة والتغليف والتحميل متاح للمشاريع الخارجية.
التعليمات
Wet Magnetic Separator FAQ
What is a wet magnetic separator used for?
It separates magnetic minerals from slurry materials in wet beneficiation and ore processing plants.
What materials can it process?
Common materials include magnetite, خام الحديد, titanomagnetite and selected magnetic mineral slurries.
Can it work after a ball mill?
نعم. It commonly works after grinding and classification in magnetic separation circuits.
هل المواصفات الفنية نهائية؟?
المواصفات المذكورة هي نطاقات مرجعية. Final configuration varies with material properties, process flow and plant layout.
اتصل بشركة فانور للتعدين
Build Your Wet Magnetic Separator System with Vanore Mining
Vanore Mining presents wet magnetic separator equipment for mineral processing projects, with specifications and plant integration support available through the project contact form.
