Spring Cone Crusher for Quarry and Mineral Crushing
Vanore Mining supplies spring cone crusher equipment for secondary and tertiary crushing in quarry, 骨料和矿物加工厂. The spring protection structure supports stable crushing duty for hard and medium-hard materials.
品牌及产品概览
Spring Cone Crusher Equipment from Vanore Mining
Vanore spring cone crusher is designed for crushing hard and medium-hard materials in stationary crushing lines. The equipment can process stone, 矿石, 玄武岩, 花岗岩, limestone and aggregate materials after primary crushing.

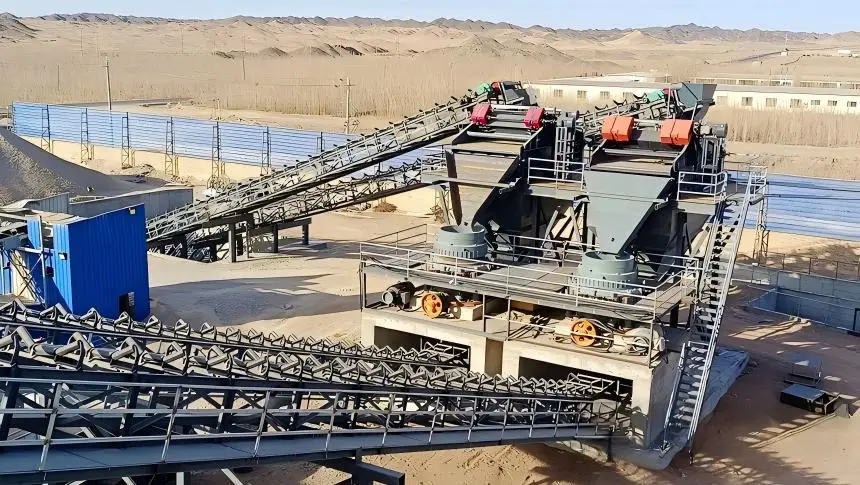

破碎机机身, 破碎室, spring protection system, transmission assembly and discharge adjustment structure support continuous plant operation. Vanore Mining integrates cone crushers with jaw crushers, 喂食者, screens and conveyors for complete crushing systems.
制造展示
Spring Cone Crusher Equipment Gallery
配置
Spring Cone Crusher Types and Configuration Options
Standard Cavity
Suitable for medium crushing after primary jaw crushing.
Fine Cavity
Supports smaller discharge sizes for aggregate shaping and mineral preparation.
Coarse Cavity
Handles larger feed materials in secondary crushing duty.
Plant Crushing System
Can work with feeders, 屏幕, conveyors and primary crushers.
优点
Spring Cone Crusher Design Features
重型框架
The crusher frame supports continuous crushing operation in quarry and mining plants.
Spring Protection
The spring system protects the crusher when non-crushable material enters the chamber.
Multiple Cavities
Different cavity types support coarse, medium and fine crushing requirements.
Stable Discharge
The adjustment structure supports controlled discharge size for downstream screening.
应用领域
Spring Cone Crusher Applications
总产量
Used for secondary and tertiary crushing in aggregate plants.
硬岩破碎
Suitable for granite, basalt and other hard stone materials.
采矿矿石破碎
Supports ore size reduction before grinding or beneficiation.
Quarry Processing
Works in stationary quarry crushing and screening lines.
选矿厂
Prepares material size for downstream milling and separation.
适用材料
Materials Suitable for Spring Cone Crushing
技术数据
Spring Cone Crusher Technical Specifications
| 模型 | Cavity Type | 最大进料尺寸 | Discharge Range | 容量 | 电机功率 | 重量 | Dimension |
|---|---|---|---|---|---|---|---|
| CZS75B | F / C / E | 85-152 毫米 | 9-38 毫米 | 45-163 吨/小时 | 75 千瓦 | 14.5 t | 2656 x 1746 x 2410 毫米 |
| CZS75D | F / M / C | 35-85 毫米 | 3-19 毫米 | 27-129 吨/小时 | 75 千瓦 | 15 t | 2656 x 1746 x 2410 毫米 |
| CZS160B | F / M / C / E | 115-220 毫米 | 13-51 毫米 | 109-358 吨/小时 | 160 千瓦 | 26.5 t | 2958 x 2354 x 3156 毫米 |
| CZS160D | F / M / C / E | 54-113 毫米 | 3-25 毫米 | 36-236 吨/小时 | 160 千瓦 | 27 t | 2958 x 2354 x 3156 毫米 |
| CZS220B | F / M / C / E | 178-313 毫米 | 16-64 毫米 | 181-645 吨/小时 | 220 千瓦 | 51 t | 3941 x 2954 x 3771 毫米 |
| CZS315B | F / M / C / E | 236-391 毫米 | 19-64 毫米 | 381-1361 吨/小时 | 315 千瓦 | 90 t | 4613 x 3251 x 4732 毫米 |
The above specifications are reference ranges based on the approved Hongji Mining Symons cone crusher parameter source.
产品结构
Main Structure of Vanore Spring Cone Crusher
破碎机机架
Supports the main crushing body and plant installation base.
破碎室
Provides the working space for stone and ore size reduction.
地幔和凹面
Wear parts form the crushing surface for material compression.
Spring System
Protects the crusher during overload and uncrushable material events.
驱动系统
Transfers power to the crusher for continuous operation.
Discharge Adjustment
Supports controlled discharge size for screening and downstream processing.
服务支持
Vanore Mining Support for Spring Cone Crusher Projects
产品配置
Vanore plans crusher model around plant capacity and material size.
备件支持
Selected wear parts can be supplied for operation planning.
常问问题
Spring Cone Crusher FAQ
What is a spring cone crusher used for?
It is used for secondary and tertiary crushing of stone, ore and aggregate materials in stationary crushing plants.
What materials can it crush?
常见的材料包括花岗岩, 玄武岩, 石灰石, 铁矿, river stone and aggregate materials.
Can it work after a jaw crusher?
是的. A spring cone crusher commonly works after primary jaw crushing and before final screening.
技术规格是最终的吗?
列出的规格为参考范围. Final configuration varies with material properties, 进料尺寸, discharge size and plant layout.
